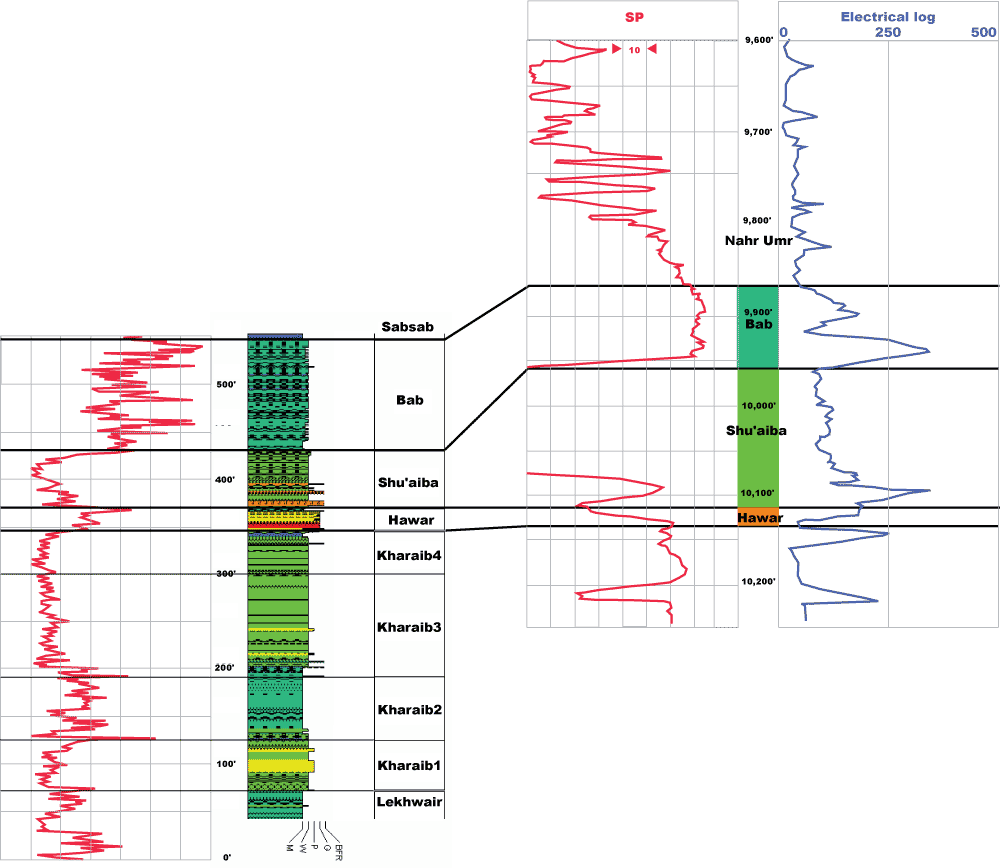

Figure 11: Correlation of the upper part of the Kahmah section in the reference well of field 'A', offshore Abu Dhabi (from Granier et alii, 2003) with the type section of the Shu'aiba (from Granier et alii, 2003; modified from Rabanit, 1951, and Al Naqib, 1967) in INOC (ex BPC) well Zubair N° 3 in southern Iraq.
