Figure 14:

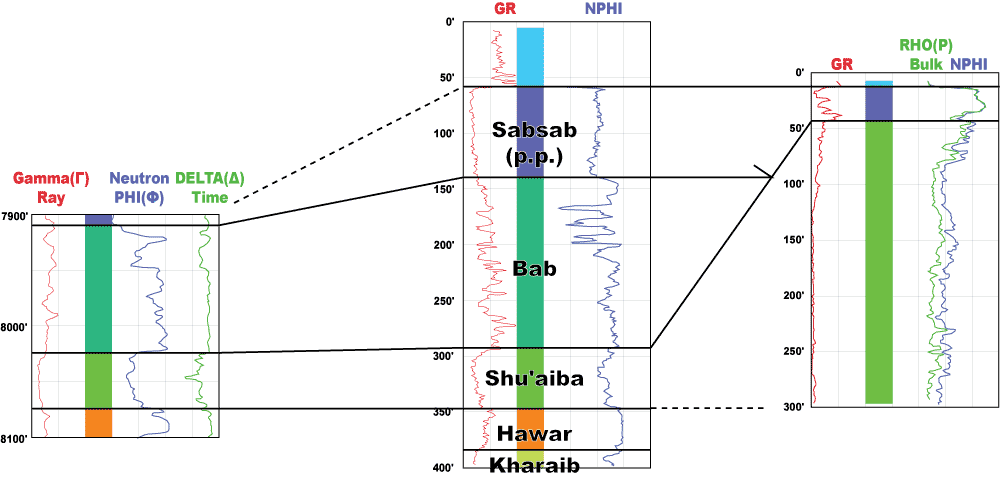

Correlation of :
- the type section of the Bab Formation (modified from Calavan et alii, 1992): ADCO (ex ADPC) well Murban N° 2 in onshore Abu Dhabi;
- both the Shu'aiba - Bab and the Bab - Sabsab boundaries in a platform-basin transition setting: ADMA well N° 4 of field
'B', offshore Abu Dhabi (Granier et alii, 2003);
- the Shu'aiba - Sabsab boundary (here a karst surface and/or an erosional surface) in a platform setting: South Bu Hasa well N° A in onshore Abu Dhabi (modified from Russell et alii, 2002).
